SP-TC Series
LED TENNIS COURT LIGHTInput Voltage:120-277VAC / 277-480VAC
Rated Power:50W - 100W
Lumens Per Watt:165lm/W
Beam Angle:P60°
LED Type:SMD5050
CCT:4000K-6000K
Dimming:0-10V
Protection:IP66 /IK08
Intelligent Control:DALI
Housing Material:6060 aluminum, SPCC iron
SP-FL10 Series
LED SPORTS LIGHTInput Voltage:120-277VAC / 220-415VAC / 277-480VAC
Rated Power:1500W / 1650W / 1800W
Lumens Per Watt:120lm/W - 160lm/W
Beam Angle:15° / 25° / P60°
LED Type:3737 (15°) / 5050 (25°/P60°)
CCT:2700K-6500K RGB RGBW RGBA
Dimming:0-10V
Protection:IP66 /IK08
Intelligent Control:DMX512 / DALI
Housing Material:1070 Alum inum Alloy
SP-FL04 Series
LED SPORTS LIGHTInput Voltage:120-277VAC /200-240VAC /200-480VAC
Rated Power:50W - 1000W
Lumens Per Watt:145-180lm/W(D1-D4); 130-170lm/W(D5)
Beam Angle:15° / 30° / 45° / 60° / 90° / 120°/ T2VS / T3VS / 30x90°
LED Type:SMD5050/2835/3030
CCT:2700K-6500K
Dimming:0-10V
Protection:IP66 /IK08
Housing Material:Die casting aluminum
Controller:NEMA Photocontrol, Zhaga Sensor
SP-M Series
LED SPORTS LIGHTInput Voltage:120-277VAC / 120-347VAC / 200-480VAC
Rated Power:400W - 1300W
Lumens Per Watt:150lm/W@5000K (15°: 135lm/W)
Beam Angle:15° / 20° / 30° / 40° / 60° / 120°
LED Type:3737(for 15*)/5050
CCT:2700K-6500K / RGB / RGBW
Dimming:0-10V
Intelligent Control:DMX512 / DALI
Protection:IP66 /IK09
Housing Material:Die-cast Aluminum
SP-Q Series
LED SPORTS LIGHTInput Voltage:120-277VAC / 120-347VAC / 200-480VAC
Rated Power:500W - 1400W
Lumens Per Watt:130lm/W - 150lm/W
Beam Angle:15° / 30° / 45° / 60° / 90° / 120° / T3VS
LED Type:3030 / 5050
CCT:2700K - 6500K / RGB / RGBW
Dimming:0-10V
Intelligent Control:DMX512 / DALI
Protection:IP66 / IK08
Housing Material:ADC12 Aluminum
SP-N
LED SPORTS LIGHTInput Voltage:120-277VAC / 120-347VAC / 200-480VAC
Rated Power:250W - 1500W
Lumens Per Watt:130lm/W - 150lm/W
Beam Angle:15° / 30° / 45°/ 60° / 90° / 120° / T3VS/ T2VS
LED Type:3030 / 5050
CCT:2700K - 6500K / RGB / RGBW
Dimming:0-10V Dimming
Intelligent Control:DMX512 / DALI
Protection:IP66 / IK08
Housing Material:ADC12 Aluminum
SP-L2 Series
LED SPORTS LIGHTInput Voltage:120-277VAC / 120-347VAC / 200-480VAC/277-480VAC
Rated Power:1000W - 1800W
Lumens Per Watt:121lm/W - 165lm/W
Beam Angle:15° / 30° / 45°
LED Type:3030 (3737 for 15° beam angle*)/3535/5050
CCT:2700K-6500K / RGB / RGBW
Dimming:0-10V
Intelligent Control:DMX512 / RDM / DALI
Protection:IP66 / IK09
Housing Material:Cold Forging Aluminum (AI1050)

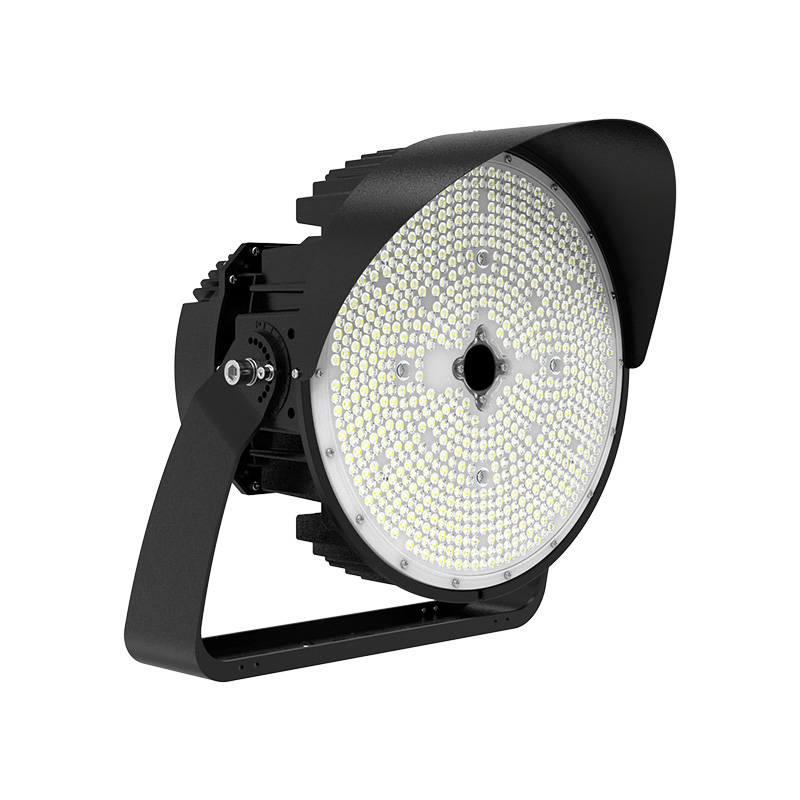

SP-J SERIES
LED SPORTS LIGHTInput Voltage:120-277VAC/120-347VAC /200-480VAC/ 277-480VAC
Rated Power:300W - 600W / 700W - 1200W
Lumens Per Watt:146lm/W - 168lm/W; 151lm/W - 171lm/W
Beam Angle:15° / 20° / 30° / 45° / 60°; 15° / 20° / 25° / 40° / 60° / 80°
LED Type:3030 (3737 for 15° beam angle*)/3535
CCT:2700K-6500K / RGB / RGBW
Dimming:0-10V
Intelligent Control:DMX512 / RDM / DALI
Protection:IP66 / IK08
Housing Material:ADC12 Die-cast Aluminum
We stand as a globally recognized, full-spectrum manufacturer specializing in LED lighting, explosion-proof lighting, and explosion-proof electrical appliances.
